BMW 5 Series: Installation locations of control units

BMW 5 Series G30 2016-2025 Training Manual / Voltage Supply and Bus Systems / Control Units / Installation locations of control units

Control Units

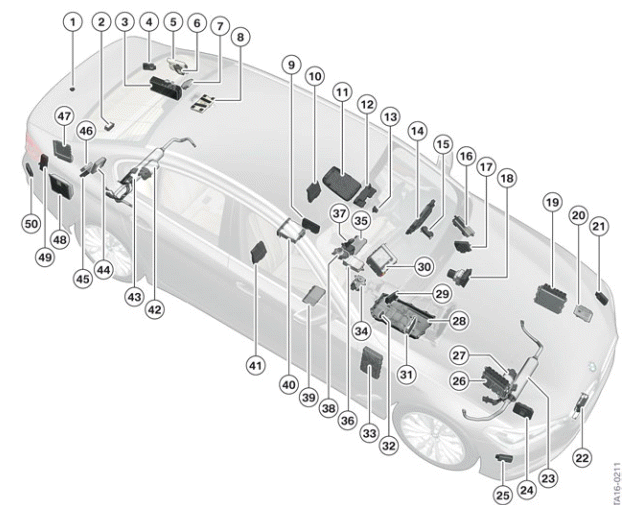

Installation locations of control units

  1. Rear view camera (RFK)
  2. Remote control receiver (FBD)
  3. Top HiFi amplifier (AMPT)
  4. Lane change warning (secondary) (SWW2)
  5. Video module (VM) (Not for the US)
  6. Light Effect Manager (LEM)
  7. Active Sound Design (ASD)
  8. Telematic Communication Box (TCB)
  9. Wireless charging tray (WCA)
  10. Seat pneumatics module front left (SPNMVL)
  11. Roof function center (FZD)
  12. Camera-based driver support systems (KAFAS)
  13. High-beam assistant (FLA)
  14. Instrument panel (KOMBI)
  15. Electronic steering lock (ELV) (Not for the US, manual transmission vehicles only)
  16. Control unit for rear view camera and SideView (TRSVC)
  17. Optional equipment system (SAS)
  18. Dynamic Stability Control (DSC)
  19. Digital Motor Electronics (DME)
  20. Frontal Light Electronics Left (FLEL)
  21. Radar Sensor Left (RSL)
  22. Active Cruise Control (ACC) Long Range Radar (LRR)
  23. Electric active roll stabilization front (EARSV)
  24. Frontal Light Electronics Right (FLER)
  25. Radar Sensor Right (RSR)
  26. Digital Engine Electronics 2 (DME2)
  27. Electronic Power Steering (EPS)
  28. Electronic transmission control (EGS)
  29. Integrated automatic heating / air conditioning (IHKA)
  30. Head Unit (HEADUNIT)
  31. Night vision electronics (NVE)
  32. Near Field Communication (NFC) (Not for the US)
  33. Body Domain Controller (BDC)
  34. Transfer case
  35. Driver's seat module (SMFA)
  36. Advanced Crash Safety Module (ACSM)
  37. Gear selector switch (GWS)
  38. Controller (CON)
  39. Front passenger seat module, (SMBF)
  40. Rear Seat Entertainment (RSE)
  41. Seat pneumatics module front right (SPNMVR)
  42. Rear axle slip angle control (HSR)
  43. Electric active roll stabilization rear (EARSH)
  44. Selective Catalytic Reduction (SCR) (Currently not available for the US)
  45. Trailer module AHM (Not for the US)
  46. Parking Maneuver Assistant (PMA)
  47. Vertical dynamic platform
  48. Power Control Unit
  49. Trunk function module (HKFM)
  50. Lane change warning SWW (primary) also know as the Short Range Radar Sensor (SRR)
