BMW 5 Series: Lighting (rear)

BMW 5 Series G30 2016-2025 Training Manual / General Vehicle Electronics / Exterior Lights / Lighting (rear)

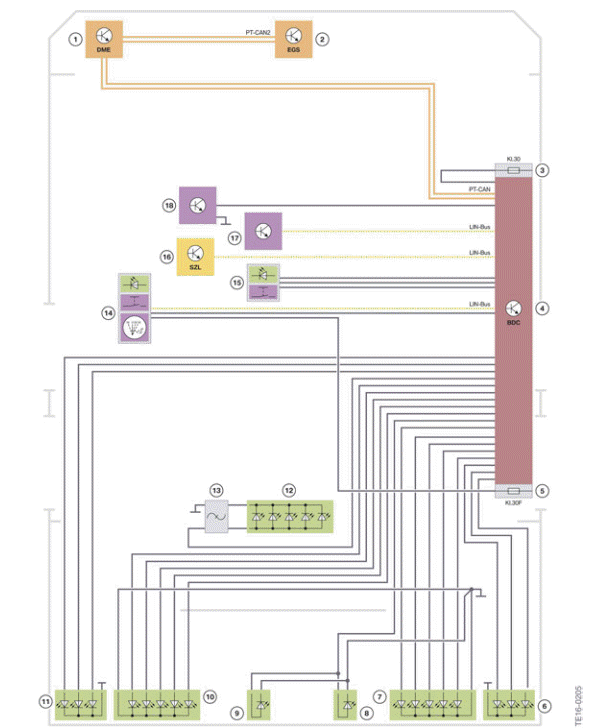

System wiring diagram

Exterior Lights
Rear exterior lights

  1. Digital Motor Electronics (DME)
  2. Electronic transmission control (EGS)
  3. Fuses in the power distribution box, front right
  4. Body Domain Controller (BDC)
  5. Fuse in the Body Domain Controller
  6. Rear light cluster, right outer
  7. Rear light cluster, right inner
  8. Licence-plate light, right
  9. Licence-plate light, left
  10. Rear light cluster, left inner
  11. Rear light cluster, left outer
  12. Additional brake light
  13. Interference suppression filter
  14. Light switch
  15. Hazard warning switch/Intelligent Safety button
  16. Steering column switch cluster (SZL)
  17. Rain-light-solar-condensation sensor (RLSBS)
  18. Brake light switch

Rear light

Exterior Lights

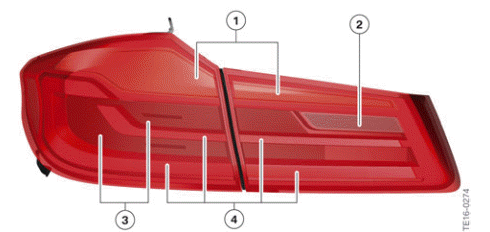

Rear light

  1. Turn indicator
  2. Reversing light (bulb)
  3. Brake light
  4. Tail light
