Introduction

There is only one instrument cluster available with the launch of the G30. The instrument cluster has an 8.8" TFT display and therefore allows for situation-dependent display of information that is relevant to the driver. This flexible display of information achieves a maximum degree of clarity and comfort and is used among other things for the following improvements:

  • Minimization of driver distraction by optimum arrangement of related functions and situation- based displays.
  • Improvement of the driving experience by the display hierarchy and design adapted to the driving situation.
  • Improved driving comfort through the display of new indicating instruments and functions (e.g. picture-in-picture map display on the instrument cluster).

Instrument Cluster
Overview of the G30 instrument cluster

Display

Instrument Cluster

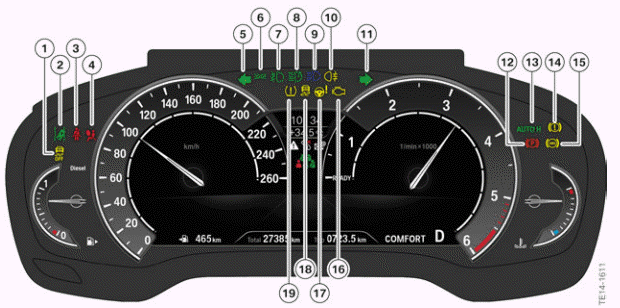

BMW 5 Series instrument cluster warning and indicator lights

  1. Dynamic Stability Control deactivated; Dynamic Traction Control activated
  2. Lane departure warning
  3. Seat belt warning
  4. Airbag warning light
  5. Turn signal indicator light / Hazard warning, left
  6. Side light and/or low-beam headlight active
  7. Fog light
  8. High-beam assistant
  9. High-beam headlight
  10. Fog light
  11. Turn signal indicator light / Hazard warning, right
  12. Parking brake
  13. Automatic Hold activated
  14. Brake system
  15. Anti-lock Brake System (ABS)
  16. Engine malfunction
  17. Steering system
  18. Dynamic Stability Control
  19. Tire pressure control
