Overview

A Touch Controller is installed in the G30:

Overview

Overview
G30 Controller

Controller

Direct access keys

  • Menu
  • MEDIA
  • COM
  • MAP
  • NAV
  • BACK
  • OPTION

Controller with a touch control box

The touch entry is processed in the head unit. A separate control unit Touchbox (TBX) is not installed.

Function

There are differences in how to operate the controller compared to G12:

  • In the G30, double-clicking on the menu button does not open the favorites list but enlarges the view of the main menu in the CID.
  • The favorites list is opened by pressing and holding the BACK button.

Central Information Display

Overview

In the G30, a 10.25" display with touch operation is standard.

Overview

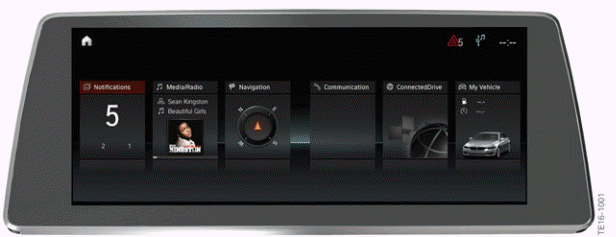

G30 Central information displays

The operation and functions of the 10.25" CID with touch function are identical to those in the G12.
