BMW 5 Series: Technical data

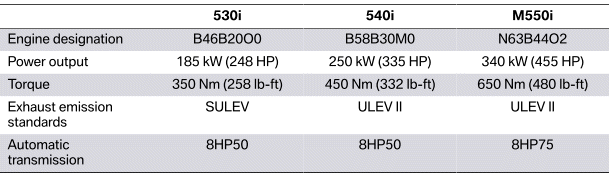

Technical data BMW 530i engine
B46B20O0 engine in the G30

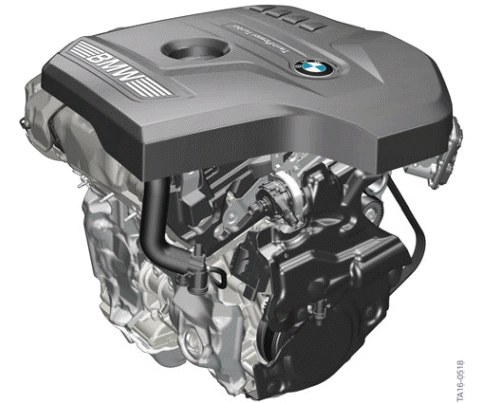

Engine highlights B46B20O0
List of the most important special features:
1. Direct rail injection system with 200 bar pressure.
2. 4th generation Valvetronic.
3. Twin-scroll turbocharger with electrical wastegate valve controller.
4. Intake air system with integrated charge air cooler.
5. Switchable coolant pump.
6. Heat management module.
7. Characteristic map-controlled oil pump with integrated vacuum pump.
Full load diagram
Full load diagram B46B20O0 engine
