Park Distance Control

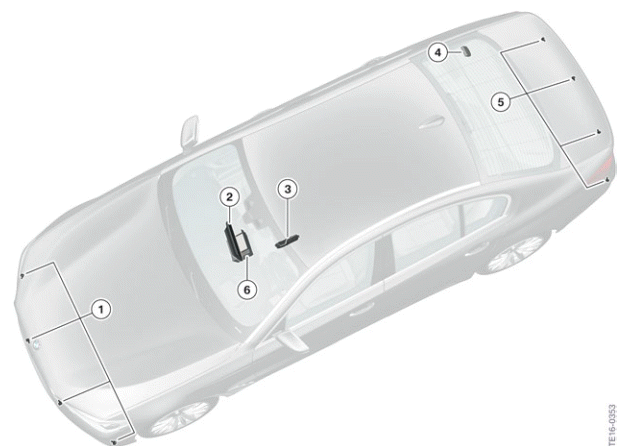

G30 Park Distance Control system components

  1. Ultrasonic sensors for Park Distance Control, front
  2. Central Information Display (CID)
  3. Operating unit
  4. Control unit for Parking Maneuvering Assistant (PMA)
  5. Ultrasonic sensors, Park Distance Control, rear
  6. Head Unit High

Vehicles that do not have the Parking Maneuvering Assistant but do have the Park Distance Control have a separate control unit, which is recognized as the PMA control unit by diagnosis and is also referred to by this name in the bus diagram. In other words, there is no longer a difference in the naming of the PDC and PMA control unit (there are however differences in the hardware design between the control units and the software is adapted to the equipment specification).

Park Distance Control
G30 Control unit for Parking Maneuvering Assistant (PMA)
