BMW 5 Series: Overview
Buttons in the vehicle

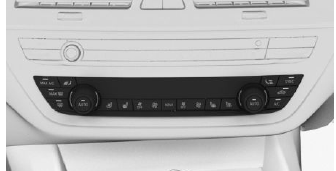

Climate control functions
.png)
Temperature
.png)
Climate control operation
.png)
Maximum cooling
.png)
AUTO program
.png)
Recirculated-air mode
.png)
Air flow, manual
.png)
Air distribution, manual
.png)
SYNC program
.png)
Defrost and defog window
.png)
Rear window defroster
.png)
Active seat ventilation
.png)
Seat heating
.png)
Opening the Climate menu.
For the following settings, for instance: upper body temperature adjustment, parked-car ventilation.
Opening the Climate menu
Press the button.
The Climate menu is displayed.
All the climate control functions which can adjusted via iDrive can be called up via the Climate menu, e.g., upper body temperature adjustment, parked-car ventilation.
Switching on/off
Switching on
Press any button except for the following:
- Rear window defroster.
- Left side of air flow button.
- SYNC program.
- Seat heating.
- Seat ventilation.
Switching off
When equipped with automatic climate control with enhanced features:
- Complete system:
.png)
Press and hold the left button
on the
driver's side until the system
switches off. - On the front passenger
side:
Press and hold the left button on the front passenger side.
